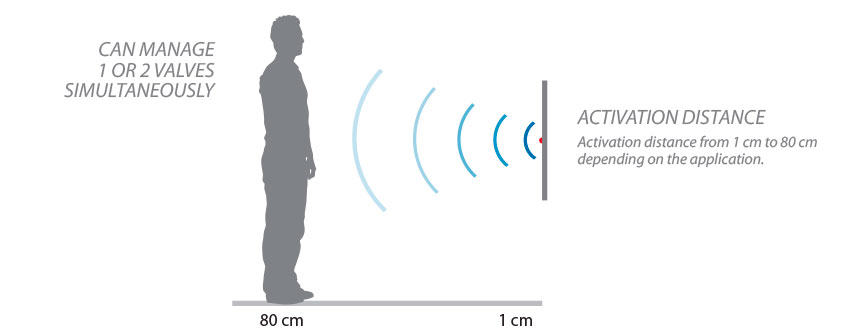

INFRARED TECNOLOGY: VARIABLE FOCUS

Able to be modeled on the needs of the application, it allows , thanks to a complete settability , to operate as IR sensor for urinals or as IR sensor for taps, including one or two valves applications.

The product settings can be performed manually through a specific sequence, therefore it does not requires the use of specific tools such as remote controls or other tools.

It can operate either using batteries or be supplied from the mains AC line and batteries (batteries operate as backup in case of mains power failure), according to all international electrical standards.

The connections to the power supply of the sensor is IPx5 compliant, and its battery holder too.
Standard power supply 4 AA primary lithium batteries.

Here following we introduce you some product examples; further products have been realized, realizable and/or customizables according to customers needs.

ET111 A

Infrared open/close variable focus sensor, including low energy valve, battery-powered.

ET111 B

Infrared open/close variable focus sensor, with valve fast-on connection, battery-powered.

ET111 B 1

Infrared open/close variable focus sensor, with valve fast-on connection, including accessories parts, hoses, non return valves and filter stopcocks suitable for premixed water supply, battery-powered.

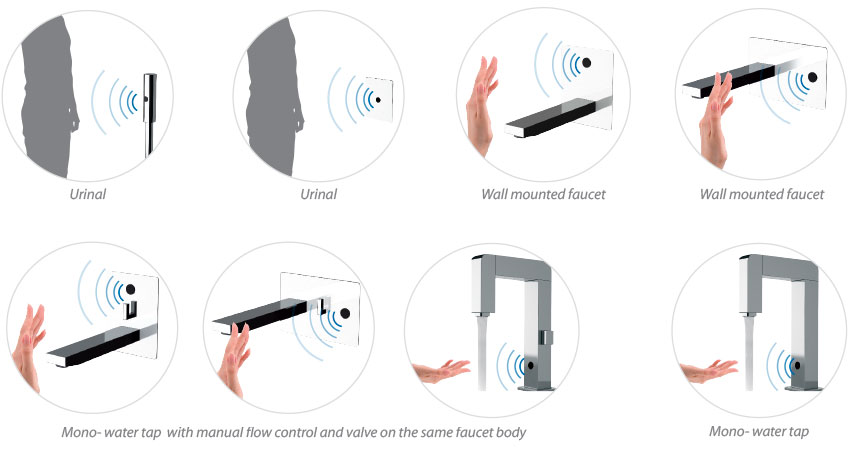

POSSIBLE LONG RANGE APPLICATIONS:

1 valve:

• Mono- water tap.
• Mono- water tap with manual flow control and valve on the same
• faucet body.
• Mono-water tap with manual pre-mixing before the valve.
• Urinal.
• Wall mounted faucet.

2 valves:

• Standard taps with manual mixing cartridge with controlled
• intercepting valves.

APPLICATION EXAMPLES OF LONG RANGE
WITH 2 VALVES AND DIFFERENT ACTIVATION DISTANCES
